• 120A MPPT solar charger inside, max pv input 6kw+ (27A )
• With local wifi built inside (Requires App. Remote Wifi optional)
• USB on-the-go function
• Optional for parallel operation of up to 9 units
• User-programmable RGB lighting for different operation modes.
• BMS built-in, with smart battery management.Compatible with LiFePo4.
• On-grid and off-grid solar inverters support self-consumption and feed into the grid.
• Various communication include USB/RS232/RS485/dry contact/WIFI/ optional.
• Touch buttons on the LCD.
•  With 12Vdc output (when having batteries) and Dual AC output .
• Wide PV input range (Up to 500Vdc), support no battery working during the day.

1. RGB LED ring(refer to LCD Setting section for the details)
2. LCD display
3. Function buttons
4. Current sharing port
5. AC input connectors
6. Circuit breaker
7. AC output connectors(Load connection 1)
8. AC output connectors(Load connection 2)
9. DC output 12VDC 10A
10. PV connectors
11. Power switch
12. Battery connectors
13. Parallel communication port
14. Dry contact
15. USB port as USB communication port and USB function port
16. BMS-communication port:CAN,RS-485 or RS-232
17. RS 232 communication port

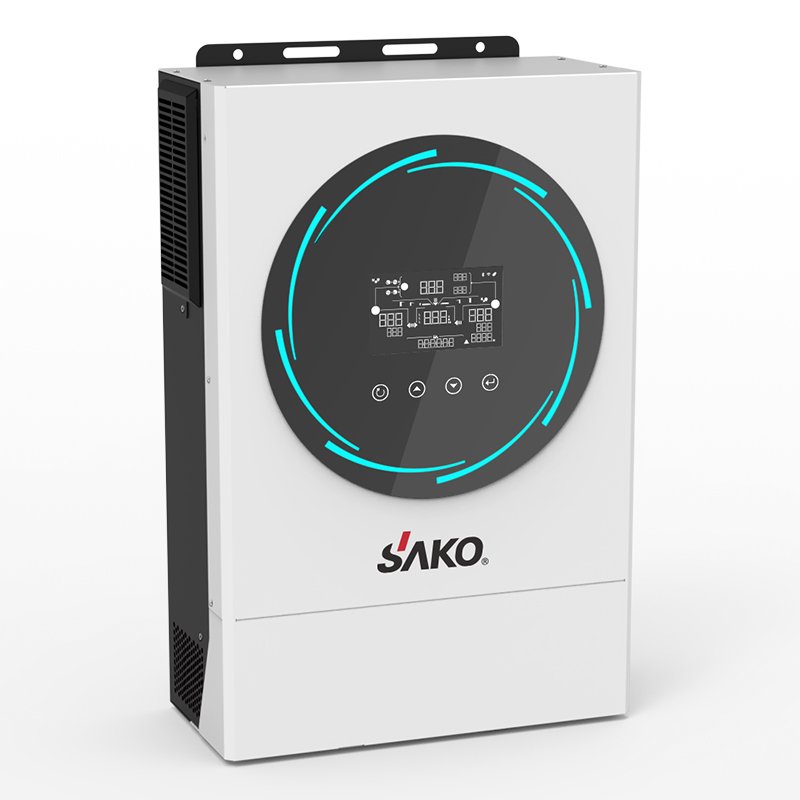

SAKO hybrid Inverter 6KW has a built-in WIFI function so that you can check the operation status of the 6kw hybrid solar inverter through APP at any time. Suitable for residential use, such as apartments, villas, etc.

SAKO Hybrid Inverter 6kw Technical Parameters

Model   No.	SUNPOLO 6KVA
Basical information
Max. PV Input   Power	6000W
Rated AC   Output Power	6000W
Grid-Tie Operation
PV Input (DC)
Nominal DC   Volt/Max DC Voltage	360VDC/500VDC
Start-up   Voltage/Initial Feeding Voltage	120VDC
MPPT Voltage   Range	120-450VDC
No. of MPPT   Tracker/Max. Input Current	1/27A
Grid Output (AC)
Nominal Output   Volt	230Vac, Single Phase
Output Voltage   Range	184V-265Vac or   195-253V (Selectable)
Nominal Output   Current	26.0A
Power Factor	>0.9
Efficiency
Max.   Conversion Efficiency (DC/AC)	96%
Off-Grid Operation
AC Input (AC)
AC Start-up   Voltage/Auto Restart Volt.	120Vac-140Vac/180Vac
Acceptable   Input Voltage Range	90-280Vac or   170-280Vac
Max. AC Input   Current	40A
PV Input (DC)
Max. DC   Voltage	500VDC
MPPT Voltage   Range	120-450VDC
No. of MPPT   Tracker/Max. Input Current	1/27A
Grid Tie Mode
Nominal Output   Volt	220Vac/230Vac/240Vac,   Single Phase
Feed-in   Voltage Range	184V-265Vac
Max Efficiency   DC/AC	>95%
Battery Mode Output (AC)
Nominal Output   Volt	220Vac/230Vac/240Vac
Waveform	Pure sine wave
Efficiency(DC   to AC)	93%
Hybrid Operation
PV Input (DC)
Nominal DC   Volt/Max DC Voltage	360VDC/500VDC
Start-up   Voltage/Initial Feeding Voltage	120VDC
MPPT Voltage   Range	120-450VDC
No. of MPPT   Tracker/Max. Input Current	1/27A
Grid Output (AC)
Nominal Output   Volt	220Vac/230Vac/240Vac,   Single Phase
Output Voltage   Range	184V-265Vac or   195-253V (Selectable)
Nominal Output   Current	26.0A
AC Input (AC)
AC Start-up   Voltage/Auto Restart Volt.	120Vac-140Vac/180Vac
Acceptable   Input Voltage Range	90-280Vac or   170-280Vac
Max. AC Input   Current	40A
Battery Mode Output (AC)
Nominal Output   Volt	220Vac/230Vac/240Vac
Waveform	Pure sine wave
Efficiency(DC   to AC)	93%
Battery & Charger
Battery Type   Supported
Nominal   Battery Voltage	48Vdc
Max Solar   Charge Current	120A
Max AC Charge   Current	120A
Max Total   Charge Current	120A
General
Physical
Products   Dimension,D X W X H (mm)	456*303*148
Product Net   Weight(kgs)	12
Packing   Dimension,D X W X H (mm)	535mm*382*mm*224mm,1PC/CTN
Gross   Weight(kgs)	13.5
Parallel   functions Optional	Yes, optional, max   9pcs
Communication   Interface	RS232,USB,RS485,WIFI
Environment
Humidity	5% to 95% Relative   Humidity(Non-condensing)
Operating   Temperature	-10℃ to 50℃
Storage   Temperature	-15℃ to 60℃
