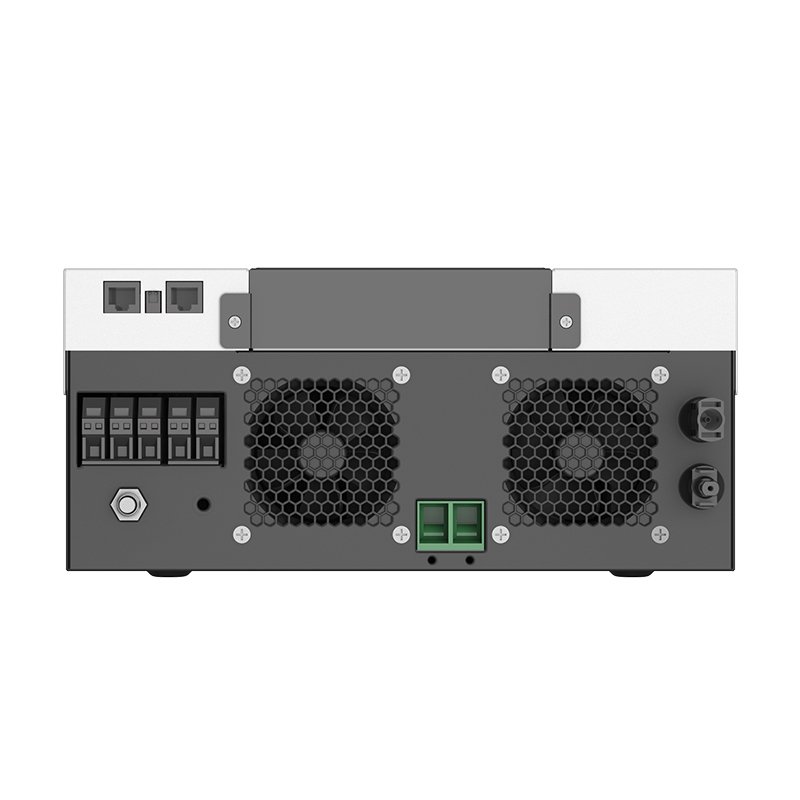

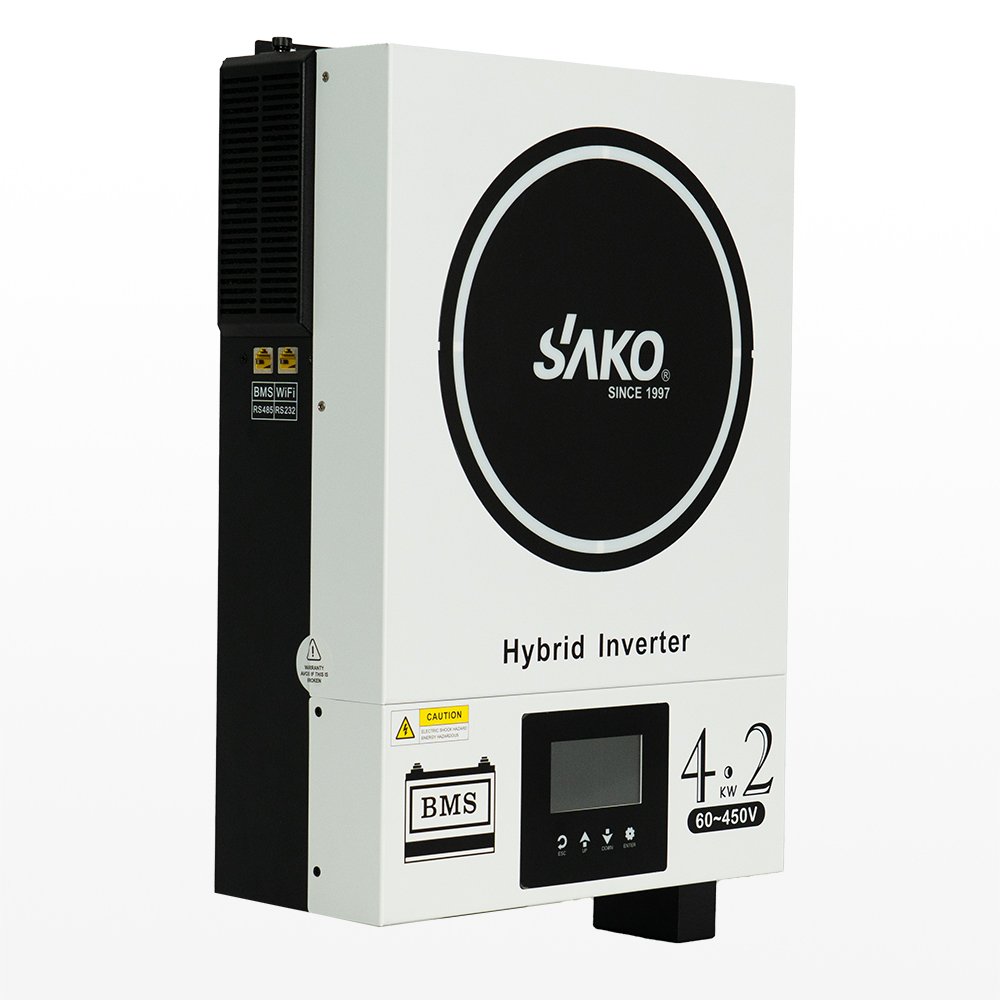

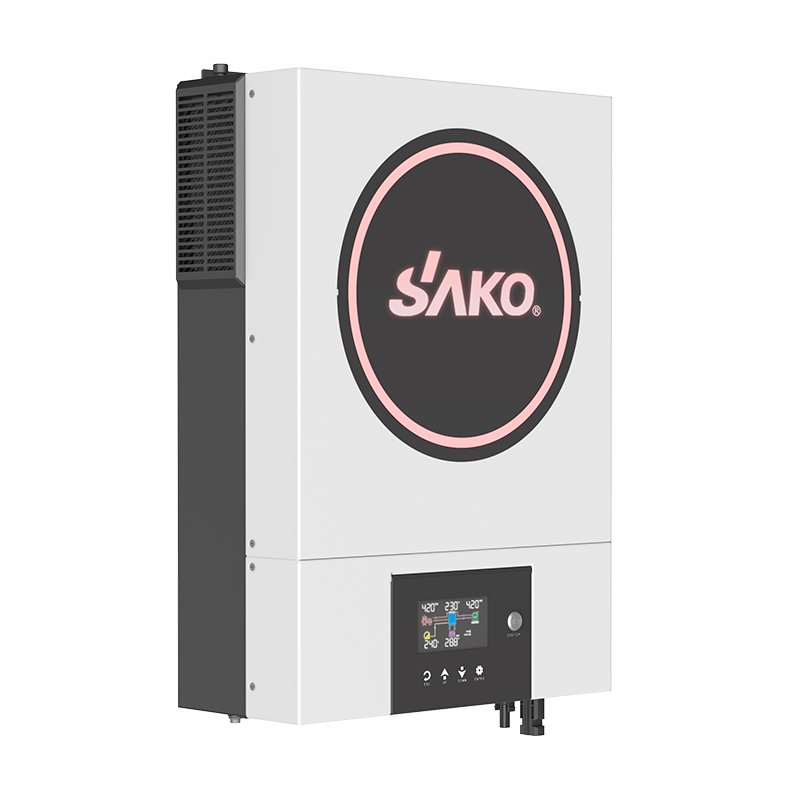

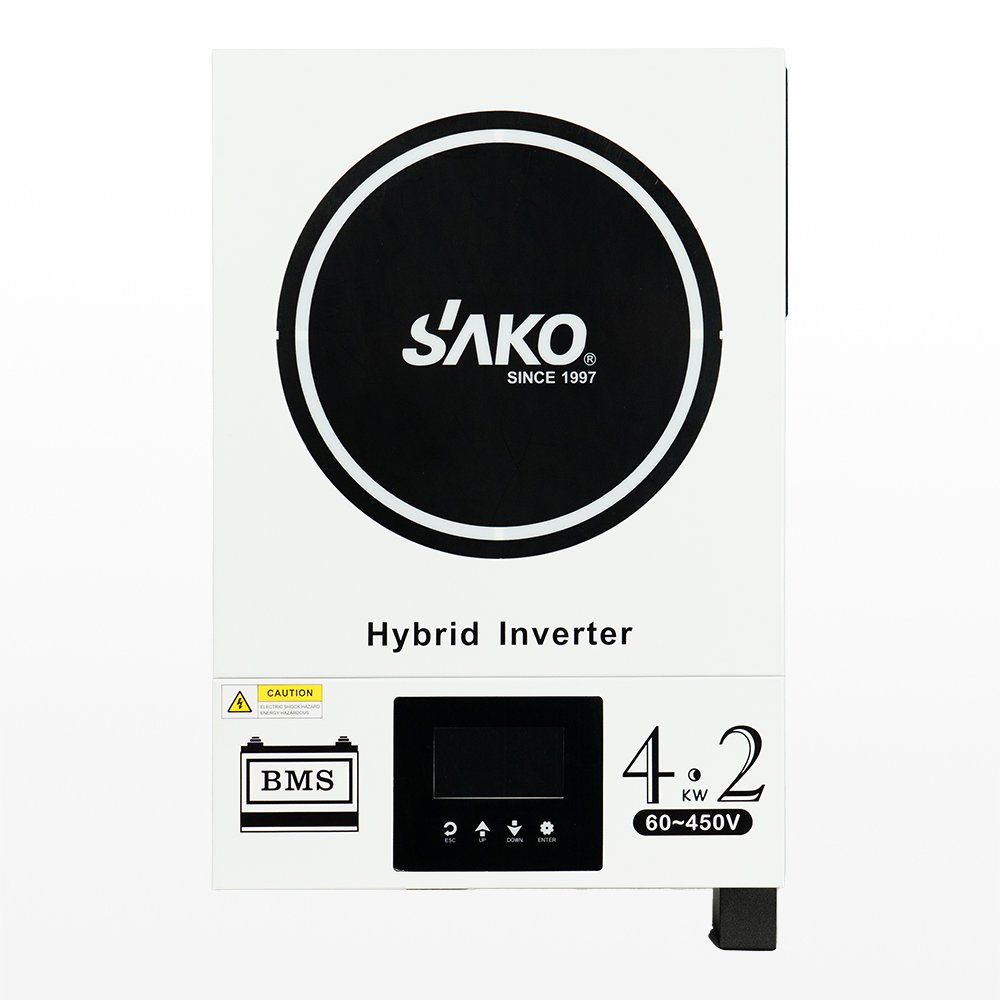

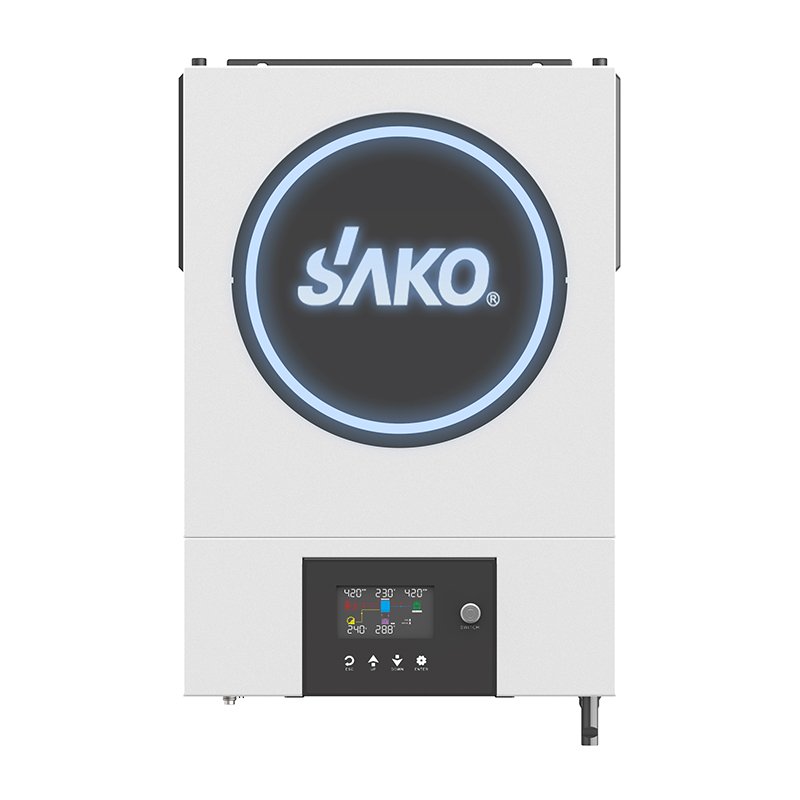

SUNON-ULTRA 4.2K MPPT Solar Inverter IP20
Parameters of the SUNON- ULTRA 4.2KW Hybrid Solar Inverter
| NEW MODEL | SUNON-ULTRA 4.2KW | SUNON-ULTRA 6.2KW |
|---|---|---|
| Max.PV Power | 6200W | 6500W |
| Rated Power | 4200W | 6200W |
| Max.Charge Current | 120A | 120A |
| BATTERY | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Battery Type | Compatible with GEL, AGM, Llithium Battery | |
| GRID INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280VAC(For Personal Computers);90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| Efficiency(AC Mode) | 98% | |
| AC OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
| Surge Power | 8400VA | 12400VA |
| Efficiency (Peak) | 93% | |
| Transfer Time | 10ms typical (UPS) ; 20ms typical ( Appliances) | |
| Waveform | Pure sine mave | |
| DUAL LOADS AC OUTPUT | ||
| Full Load | 4200W | 6200W |
| Maximum Main Load | 4200W | 6200W |
| Main Load Cut Off Voltage | 22VDC | 44VDC |
| Main Load Retum Voltage | 27VDC | 54VDC |
| SOLAR CHARGER &AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 6200W | 6500W |
| Max. input Current | 27A | 27A |
| MPPT Range @ Operating Voltage | 60~500VDC | 60~500VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maximum Solar Charge Current | 120A 100A |
120A |
| Maximum AC Charge Curent | 100A | |
| Maximum Charge Curent | 140A | 120A |
| PHYSICAL | ||
| Packing Dimension,DXWXH(mm) | 555*385*220mm | 555*385*220mm |
| Weight (kgs) | 10.9 | 11.6 |
| Communication Interface | USB/RS232/WIFI/GPRS | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C to 50℃ | |
| Storage Temperature | -15°C to 60℃ | |
