Description

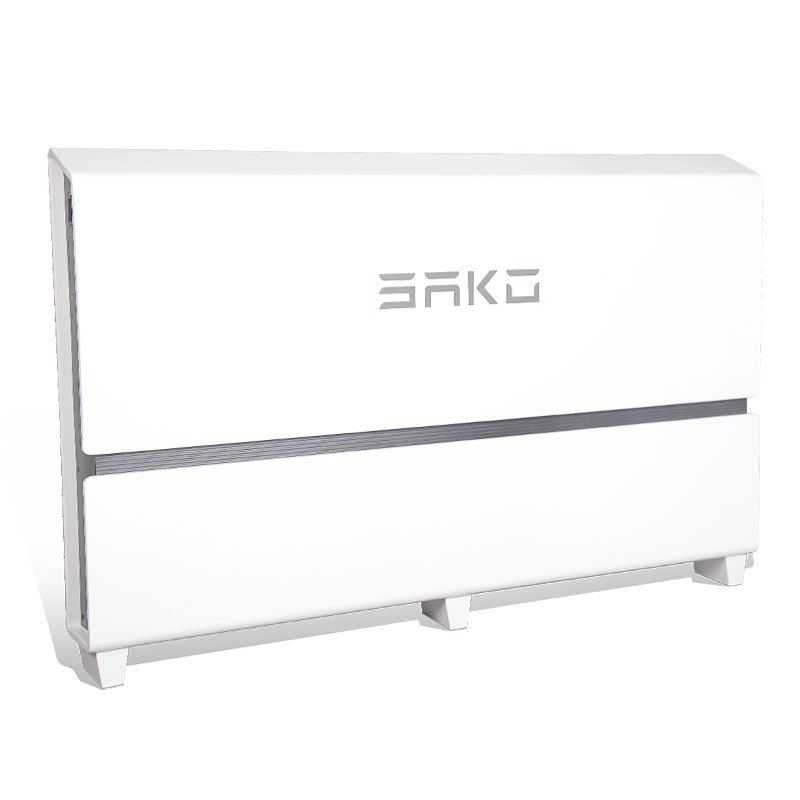

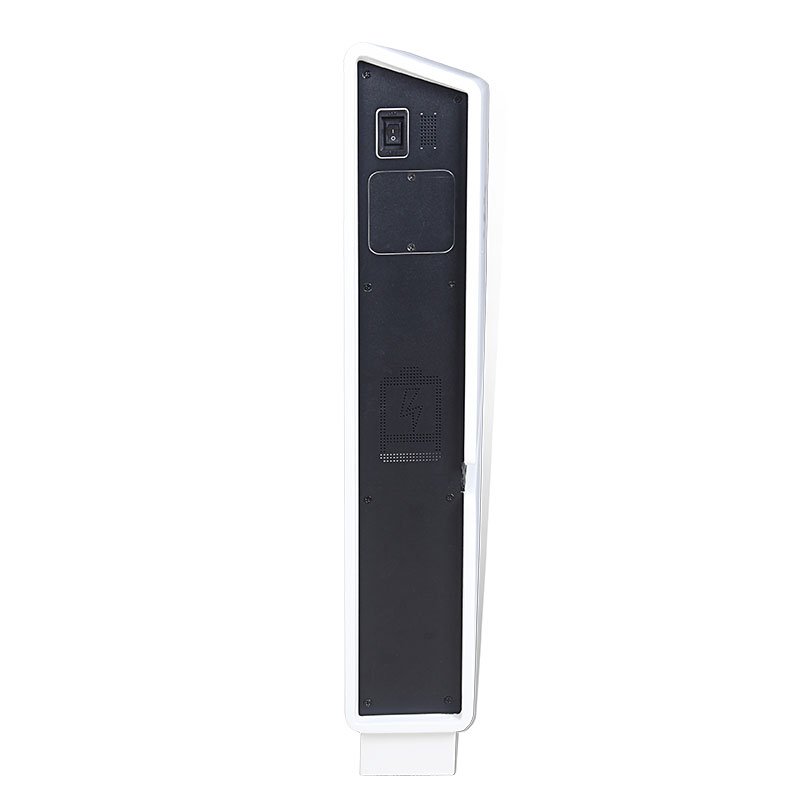

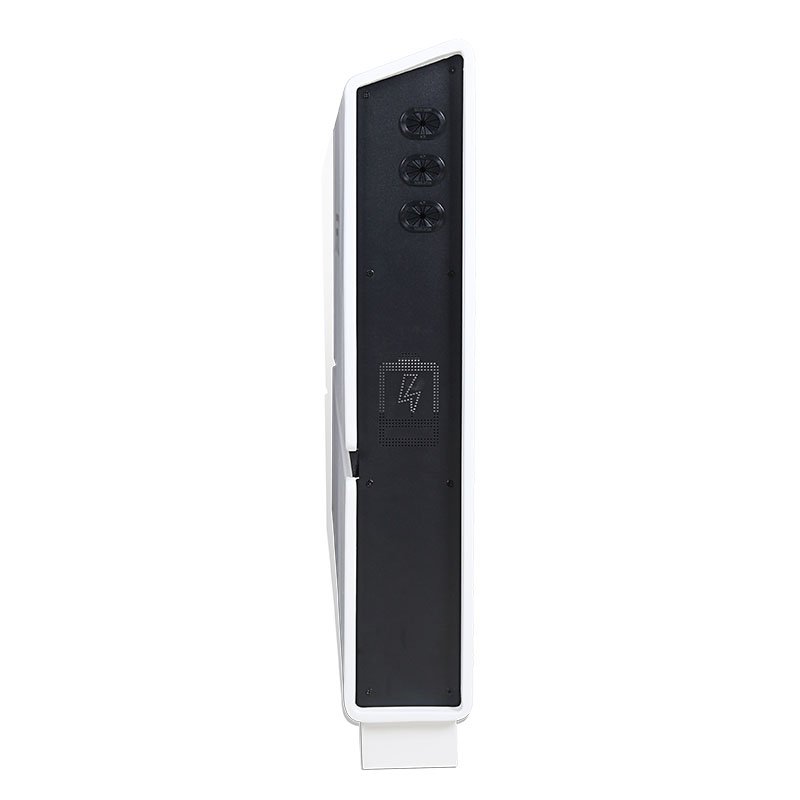

SAKO Li-Power 130Ah Power Wall Lithium Battery with BYD Blade Cells 8000 Cycles
SPECIFICATION
| MODEL | Li-Power 51.2V 130AH |
|---|---|
| Battery Type | LiFePO4 |
| Total Energy | 6656Wh |
| Usable Energy(80%DOD) | 5990Wh |
| Voltage window | 44.8 〜 58.4V |
| Fast Charge Voltage | 57.6V |
| Folat Charge Voltage | 56.0V |
| Low DC Cut-o ffVoltage | 46.8V |
| Max.continue discharge current | 100A |
| Max.pulse discharge current | 150A 1Sec. |
| Max.continue charge current | 65A |
| Scalable | 1~15 in parallel |
| Communication | CAN,RS485 |
| Cycle life | ＞8000 Cycles@(+25℃,0.5C,90%DOD,60%EOL) |
| Terminal | M8 |
| Storage temperature | 0℃〜 30℃ |
| Storage duration | 6 months at 25℃ |
| Safety standard | UN38.3,MSDS |
| IP degree | IP20 |
| PROTECTION | |
| Protection | Over charge protection,Over discharge protection,Over current protection, Shortcircuit protection, Over temperature protection |
| AMBIENT | |
| working Temperature | -10℃〜 +50℃ |
| Humidity | 0~95% ( no condensation) |
| DIMENSION | |
| L×W×H (products size) mm | 1090*685*120mm |
| L×W×H (package size) mm | 1150*735*185mm (UN wooden cases) |
| Weight(NW Kg) | 78.6Kg |
| Weight(GW Kg) | 97.2Kg |
| 20FT QTY( UNIT) | 140 |
