Description

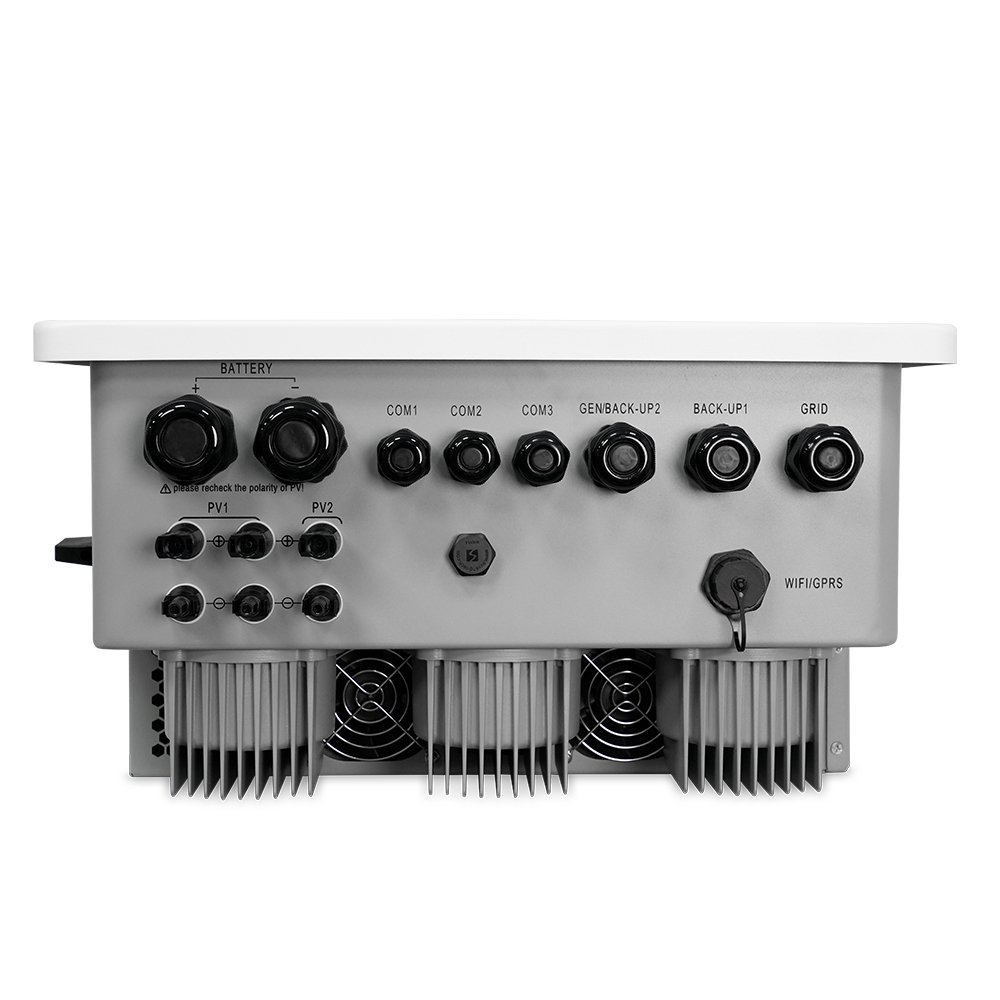

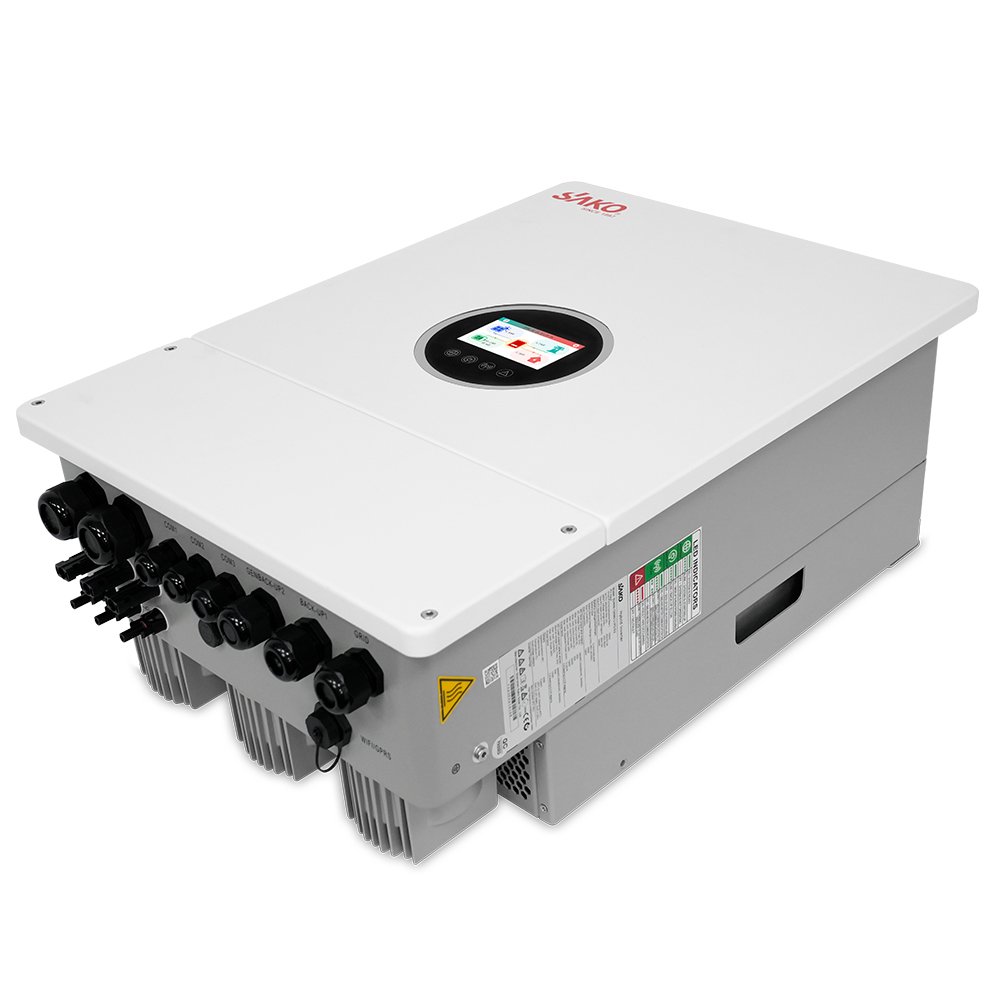

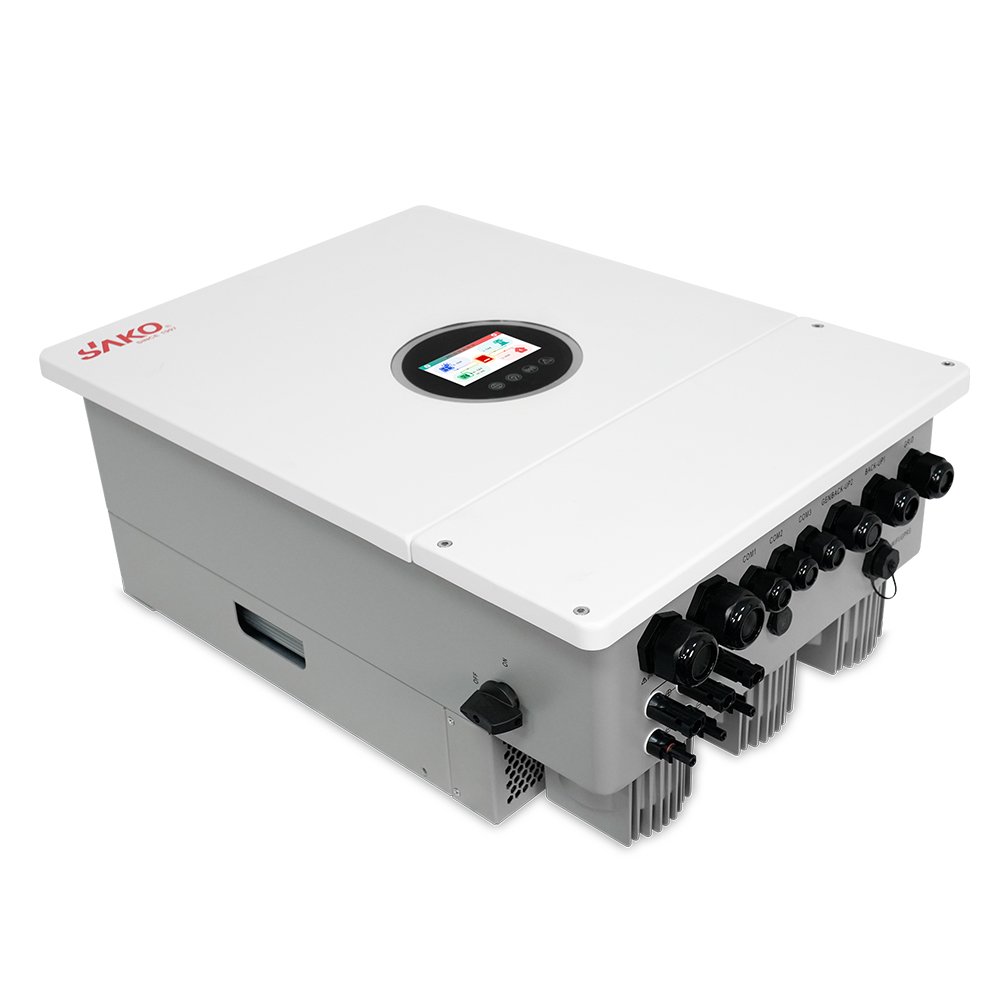

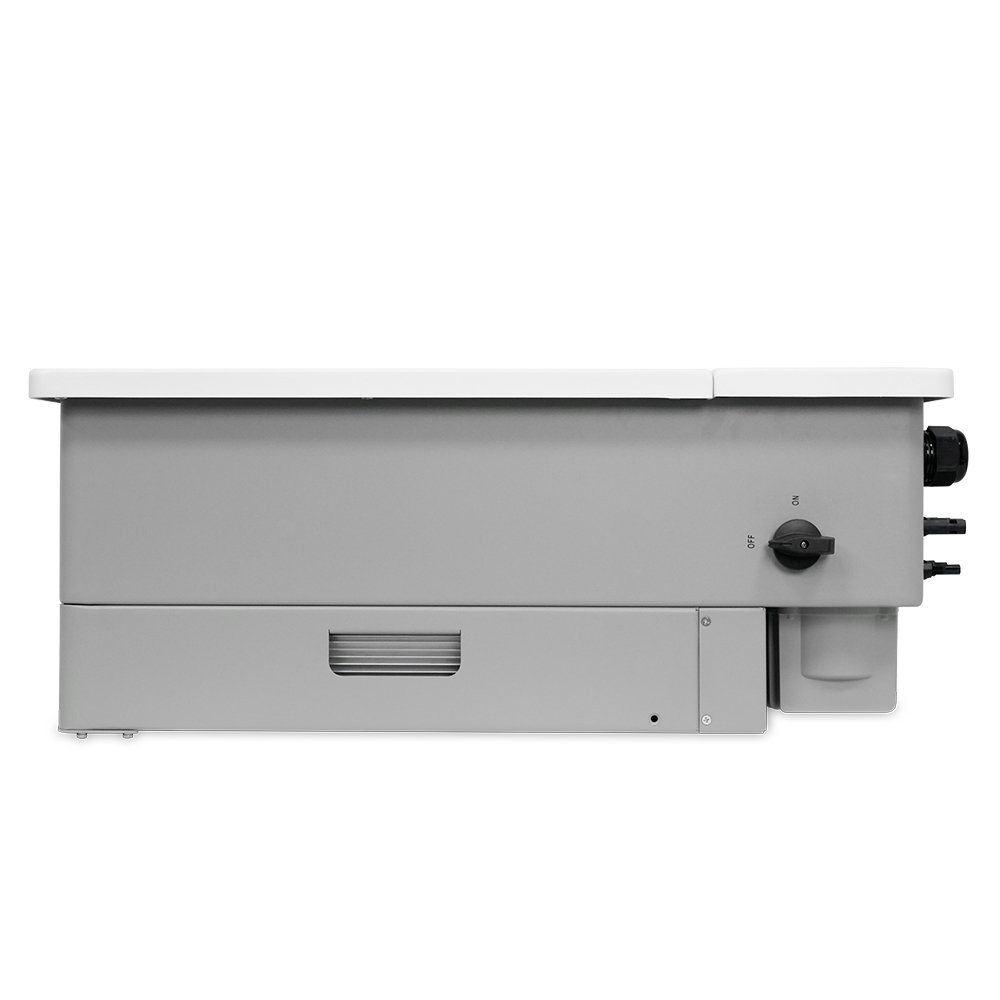

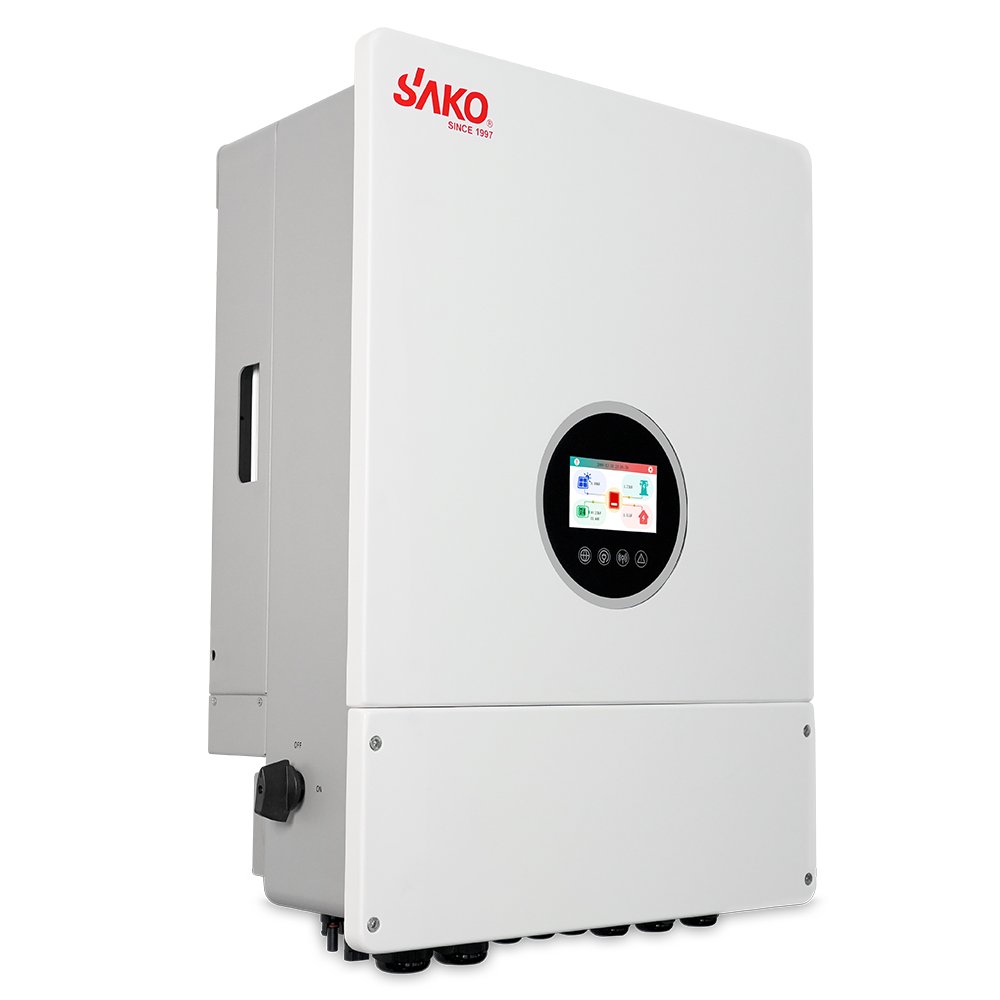

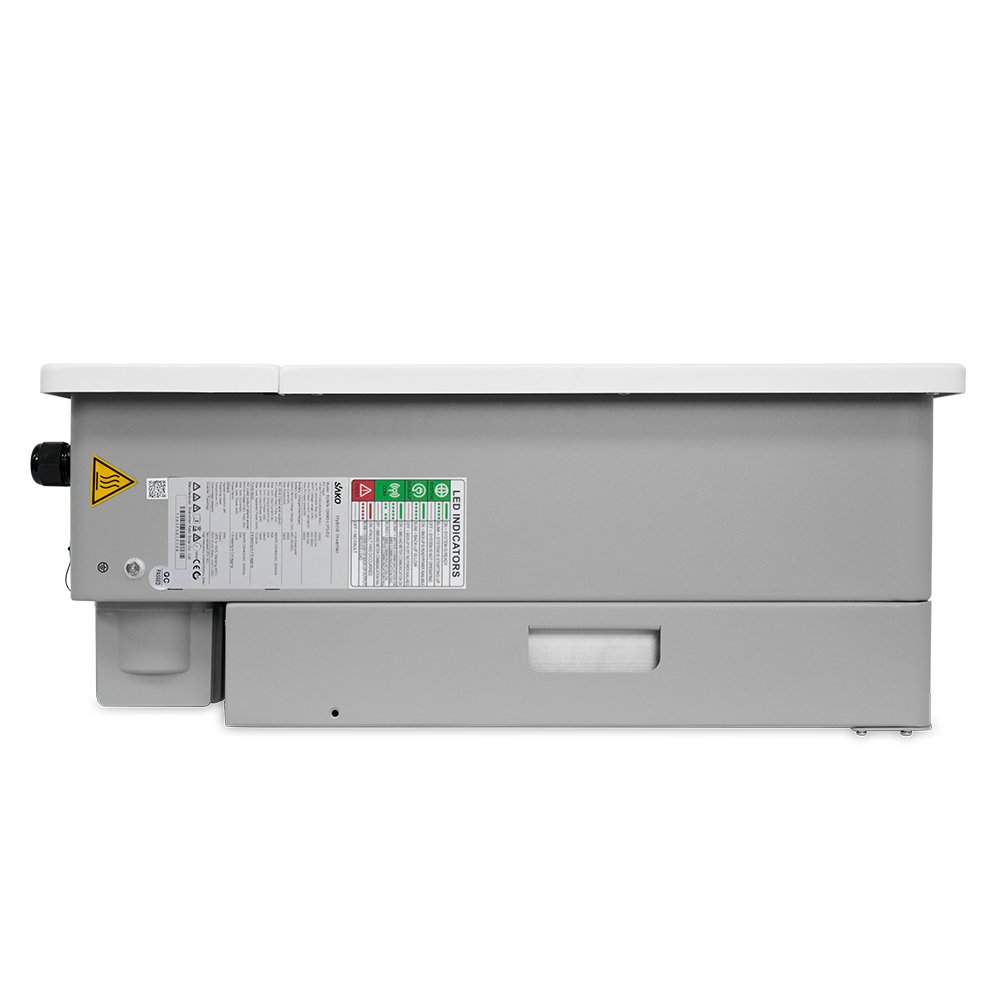

IP66 SUNIN-12K-L1P3-EU Hybrid Inverter
TECHNICAL PARAMETER
| Product Models | SUNIN-6KM3- L1P3-EU | SUNIN-8KM3- L1P3-EU | SUNIN-10KM2- L1P3-ATEU | SUNIN-12KM2- L1P3-ATEU | SUNIN-15KM2- L1P3-ATEU |
|---|---|---|---|---|---|
| Battery Input Parameters | |||||
| Battery Type | Lithium or Lead-acid Battery | ||||
| Rated Battery Voltage (V) | 48V | ||||
| Maximum Charging Voltage (V) | ≤60V(configurable) | ||||
| Maximum Charging/Discharging Current (A) | 120A | 160A | 210A | 250A | 280A |
| PV Input Parameters | |||||
| Maximum DC Input Power (kW) | 10kW | 12kW | 20kW | 24kW | 30kW |
| Maximum DC Input Voltage (V) | 1000 | ||||
| MPPT Voltage Range (V) | 200~800V | ||||
| Start-up Voltage (V) | 150V | ||||
| Maximum Input Current (A) | 20A/20A | 20A/20A | 36A/18A | 36A/18A | 36A/18A |
| Number of MPPT Trackers | 2 | 2 | 2 | 2 | 2 |
| AC Output Parameters (Grid-tied) | |||||
| Maximum Apparent Output Power (VA) | 6600 | 8800 | 11000 | 13200 | 16500 |
| Rated Output Voltage (V) | 380/400V | ||||
| Rated Output Frequency (Hz) | 50/60Hz | ||||
| Maximum Output Current (A) | 10A | 13.4A | 16.7A | 20A | 25A |
| Output Power Factor | 1(0.8 leading ~ 0.8 lagging) | ||||
| AC Output Parameters (Off-grid) | |||||
| Rated Output Power (W) | 6000 | 8000 | 10000 | 12000 | 15000 |
| Peak Output Power (W) | >200%,15sec | ||||
| Rated Output Voltage (V) | 380/400V | ||||
| Rated Output Frequency (Hz) | 50/60Hz | ||||
| Rated Output Current (A) | 9.1A | 12.1A | 15.2A | 18.2A | 22.8A |
| Efficiency | |||||
| Max. Efficiency (PV) | 98% | ||||
| Max. Efficiency (Battery) | 94.5% | ||||
| European Efficiency | 97.5% | ||||
| Protection | |||||
| PV Reverse Polarity Protection | Integrated | ||||
| PV Insulation Resistance Detection | Integrated | ||||
| Residual Current Detection | Integrated | ||||
| Output Overcurrent Protection | Integrated | ||||
| Output Short-circuit Protection | Integrated | ||||
| Output Overvoltage Protection | Integrated | ||||
| General Parameters | |||||
| Operating Temperature (°C) | -25~60°C(derating above 45°C) | ||||
| Storage Temperature (°C) | -30~65°C | ||||
| Relative Humidity | 0~95% | ||||
| Operating Altitude (m) | ≤4000m(derating above 2000m) | ||||
| Cooling Method | Intelligent Forced Air Cooling | ||||
| Noise (dB) | <55dB | ||||
| Weight (kg) | 38kg | ||||
| Dimensions (W × H × D mm) | 475*683*256mm | ||||
| IP Rating | IP66 | ||||
| Topology | High-frequency Isolation (Battery Side) | ||||
| Safety / EMC Certification | IEC62109, IEC61000, IS16169 & IS16221(BIS) | ||||
| Grid Compliance | IEC61727, EN50549-1, VDE-4105, NRS-097-2-1, OVE-Richtlinie R25, UNE217001/2, Ordinace No.140 | ||||
| Other Certifications | IEC61683, IEC62116, EN50530, IEC60068 | ||||
